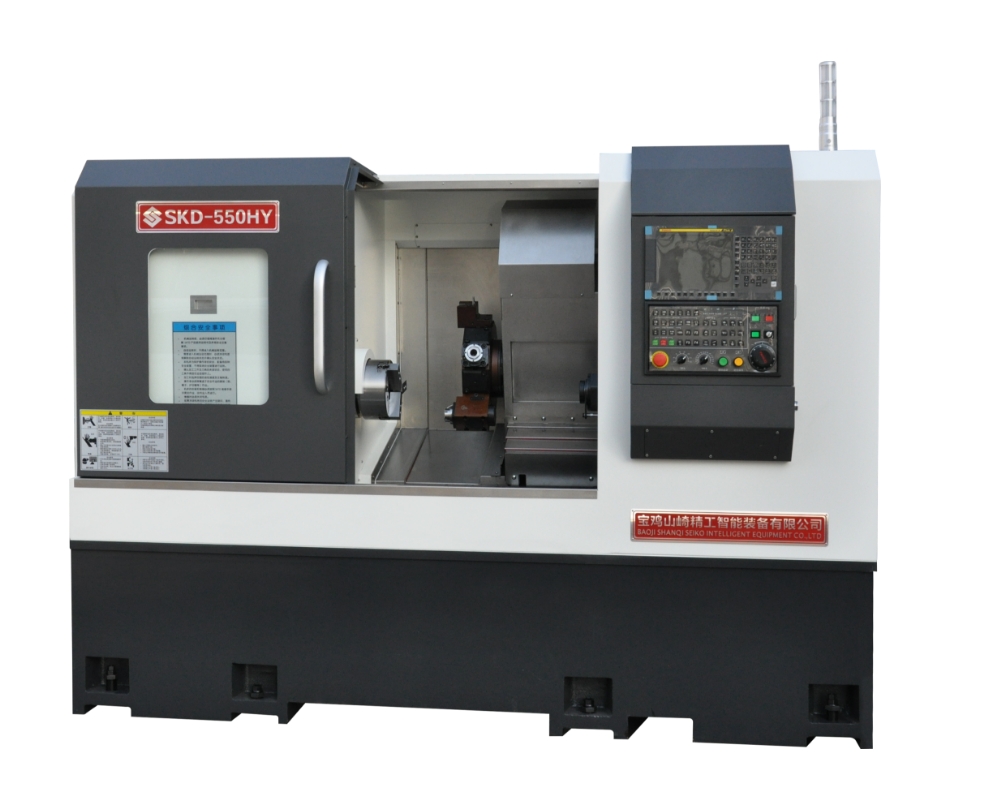

型號：SKD-550HY
產品時間：2024-10-16
簡要描述：SKD-550HY精密車銑復合機床式我司針對零件復雜、加工難度大、工序多、效率低、質量良率差的機械零件加工行業現狀，結合多年豐富機床制造經驗，借鑒先進設計理念和實踐成果，精心打造的一款精密車銑復合數控機床產品。 The features of SKTD-550HY 1.Gross weight is around 6000kg, it specializes high duty cutting and mill-turn processing. 2.It has high and low guideway bed structure,and its weighted balanced by high guideway slider. 3.The screw and guideway were from Taiwan PMI brand,it adopts 45mm roll guideway,which its absolutely suitable for high duty cutting. 4.Its equipped with electrical spindle with large torque,high speed revolution and stable movement. 5.Y axis of machine was equipped with wide-distance type box guideway,which has slant angle 15 degrees and could be able to keep Y axis low center gravity and keep excellent rigidity.
SKD-550HY 精密車銑復合數控機床可一次裝夾即可完成對加工件的精密車削、鉆孔、銑削、剛性攻絲等加工，可實現X/Z/Y 三軸聯動控制。
550HY特點：
1，機床整體重量約6000Kg重，適合重切前和銑削加工。
2，機床床身采用高低軌結構，高軌滑塊受力均勻。
3，絲杠，導軌采用中國臺灣PMI品牌，導軌采用45mm滾柱形式，適合重切削。
4，機床主軸采用電主軸，力矩大，轉速高，運轉平穩。
5，機床Y軸采用寬距式硬軌結構，傾斜角15度，使Y軸重心低，剛性好。
加工范圍 |
行程 |
|
|
最大床身回轉直徑 Ø550 最大加工長度 500 棒料通過能力 Ø51 |
X軸行程 260 Z軸行程 600 Y軸行程 +-50 |
